  Optidrive PCE

High performance integrated motor drive

Sensorless vector control — up to 200% torque from zero speed

IP55 enclosure protects against dust and fluid ingress

Available with optional keypad or potentiometer

Suitable for motor power ratings up to 1.5kW

Supplied with universal adaptor plate to suit most motors

Features
  • High performance integrated motor drive
  • Sensorless vector control — up to 200% torque from zero speed
  • IP55 enclosure protects against dust and fluid ingress
  • Available with optional keypad or potentiometer
  • Suitable for motor power ratings up to 1.5kW
  • Supplied with universal adaptor plate to suit most motors


  Electrical Data


200-240V - 1 PhaseMotor Power (kW)Output Current (A) Frame Size
OPC-1-12075-1K0120.754.31
OPC-1-12150-1K0121.571


200-240V - 3 PhaseMotor Power (kW)Output Current (A) Frame Size
OPC-1-12150-3K0121.571



380-480V - 3 PhaseMotor Power (kW)Output Current (A) Frame Size
OPC-1-14075-3K0120.752.21
OPC-1-14150-3K0121.54.11

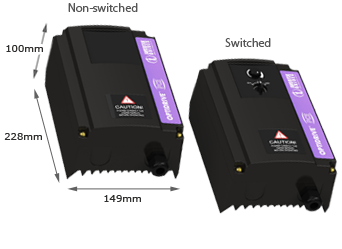

  Dimensions

Size Length (mm) Width (mm) Depth (mm) Weight (kg) Fixings
1 228 149 100 0
